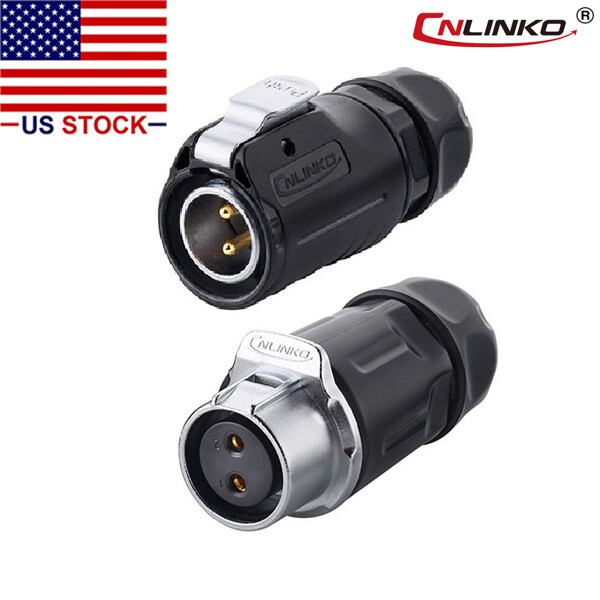

CNLINKO 2 Pin Power Connector Cable to Cable,Plug w/ Receptacles IP67 Waterproof
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Contact Material | Copper |
| Compatible Wire Gauge (AWG) | 14-12 AWG |
| Country/Region Of Manufacture | China |
| Shell Size | M20 |
| Current Type | AC/DC |
| Connecting Mode | Plug/Unplug |
| IP Rating | IP67 |
| Body Material | ABS & Zinc |
| Brand | CNLINKO |
| Termination Type | Solder |
| Certificate | UL, CE, RoHS |
| Minimum Operating Temperature (Actual) | -40°C |
| Maximum Operating Temperature (Actual) | 80°C |
| Minimum Operating Temperature (Nominal) | -40°C |
| Maximum Operating Temperature (Nominal) | 80°C |
We are the only authorized eBay retailer for "CNLINKO" brand connector products, with complete warranty. Selling Items Model Number: Male Plug: LP-20-C02PE-01-001Female Docking Plug: LP-20-J02PP-01-001 Features: ● 2 cores in line with the diversity of industrial demand, signal and power compatible match.● Socket and internal components zinc alloy material, with a complete electromagnetic and radio frequency interference protection.● Gold-plated contacts, high-strength corrosion resistance and electrical conductivity, effective response to temperature changes in current.● PBT material shell, stable electrical performance, high strength and resistance to pressure, high temperature resistance, anti-explosion, anti-corrosive.● Unique docking design, a solid line extends infinitely long● 4-hole mounting, solid flawless, thread type transposon installation, suitable for circular openings industrial installation.● 20A rms rated current● Protection Level: IP67 Specification: Cable specification2.5m㎡～4m㎡/14-12 AWGDiameter range Φ8mm～Φ12mmContact diameter × numberΦ2.7x2Rated Current (A)20AOperating voltage (AC.V.rms)500V Contact resistance<1mΩTemperature rise 20A contact temperature below 30℃,25A ......40℃↓,30A......50℃↓Withstanding Voltage (AC.V) 1 minute2500VInsulation resistance＞500MΩProtection level IP67Durability≥500 timesWorking temperature-40℃～80℃Connecting modePlug/unplugAssembly wireSolderHousing, the insulating partsHigh-performance engineering plastics Hardware Zinc Alloy (pearl hard chrome) Copper needlesCopper alloy (gold-plated 4U) Waterproof circleSilica gelFlammability ratingUL94-V0 LP-20 Series Specification Sheet
