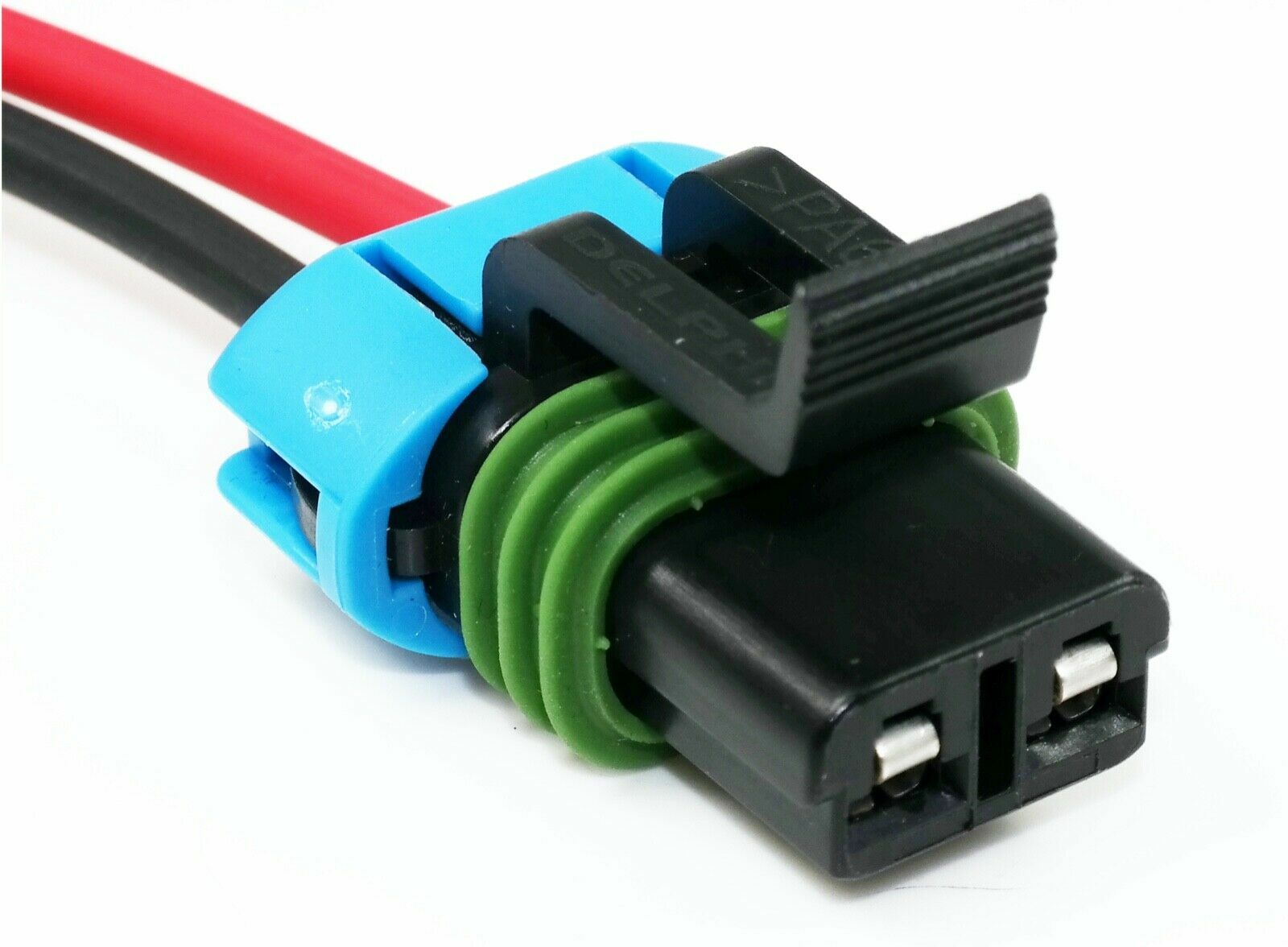

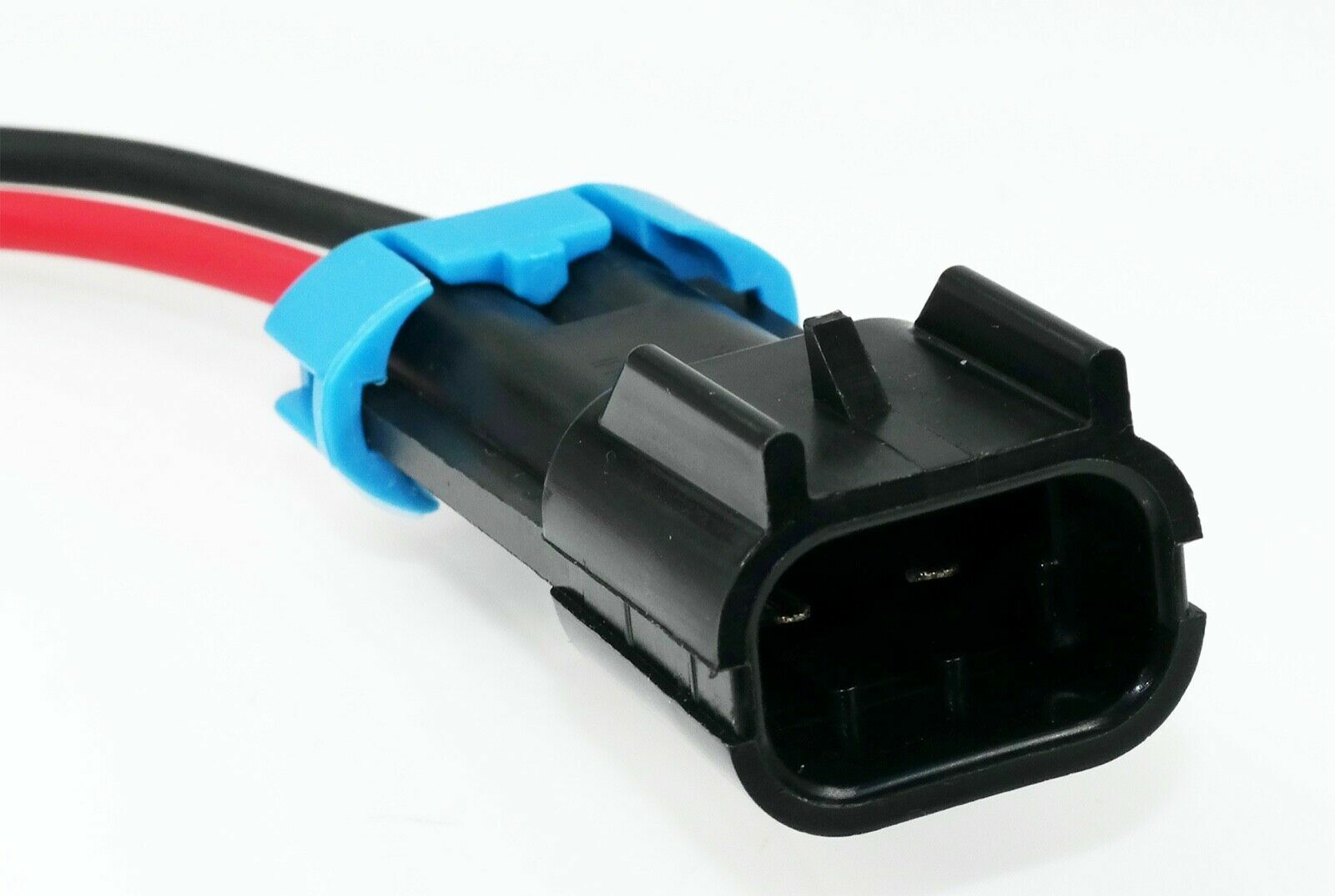

Delphi Metri-Pack 2-Pin 280 Series Male & Female Connector Multi-Purpose Pigtail
USD 12.89 USD
Specifications
| Brand | Delphi |
| Connector Style | 2-Pin |
| Compatible Mounting Type | Wire |
| Type | Crimp Connector |
| MPN | Metri-Pack 280 Series |
| Model | Metri-Pack 280 Series |
| Termination Type | Crimp |
| Contact Material | Brass |
| Country/Region Of Manufacture | United States |
| Gender | 1 Set |
| Body Material | Polypropylene |
| Maximum Operating Temperature (Actual) | 125°C, |
| Minimum Operating Temperature (Actual) | -40°C |
| Standards/Compliance | RoHS |
| Minimum Cable Diameter | 0.137 inch - 3.49mm |
| Maximum Cable Diameter | 0.143 inch - 3.65mm |
| Max Amps | 30A |

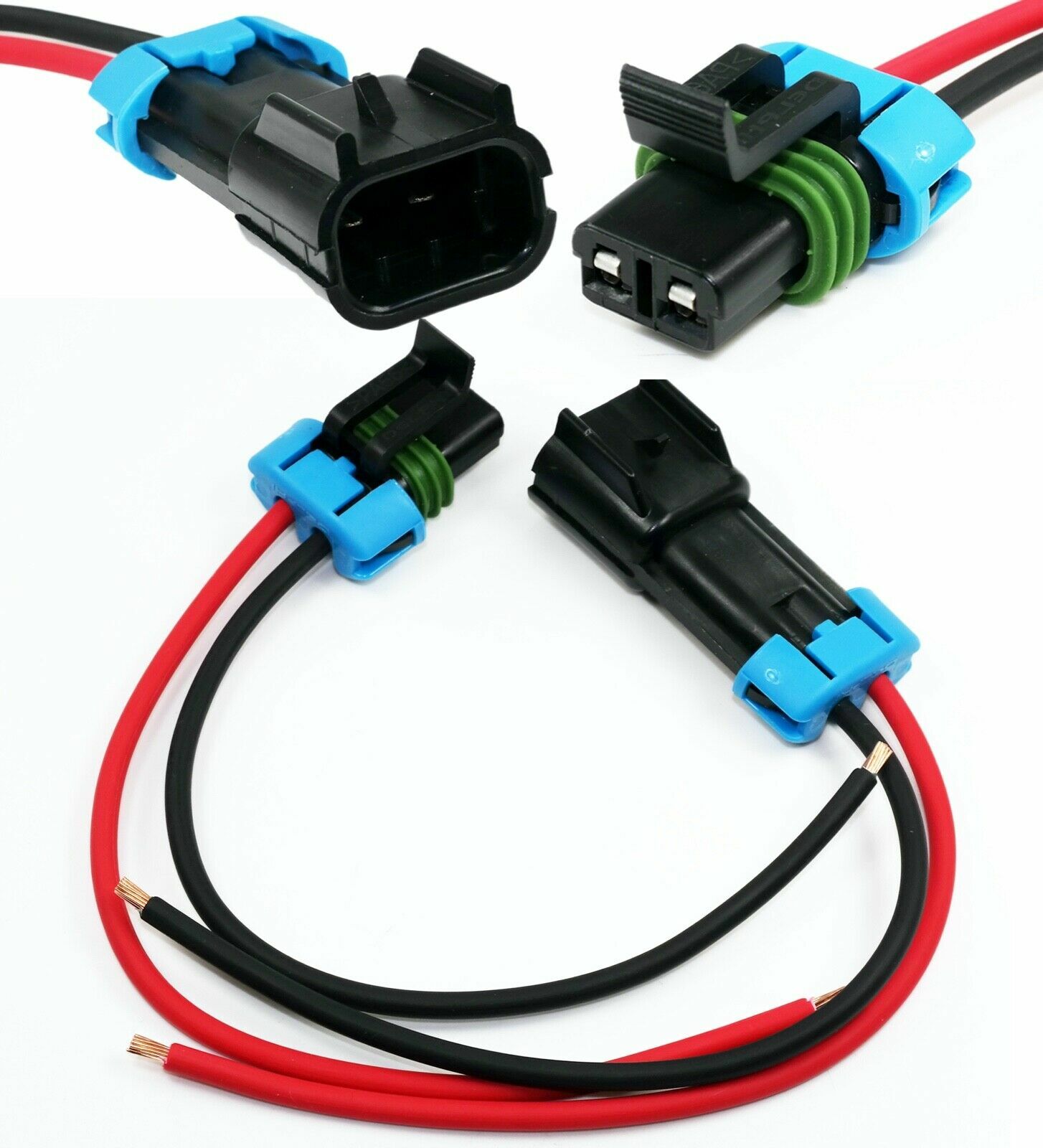

Included: 1x Delphi 2 way 6" Male Pigtail 6" wire. 1x Delphi 2 way 6" Female Pigtail 6" wire. In-line connector are ideally suited for space-limited application. Pass SAE J2030 Heavy-Duty Electrical Connector Standard (with silver interface platings).
