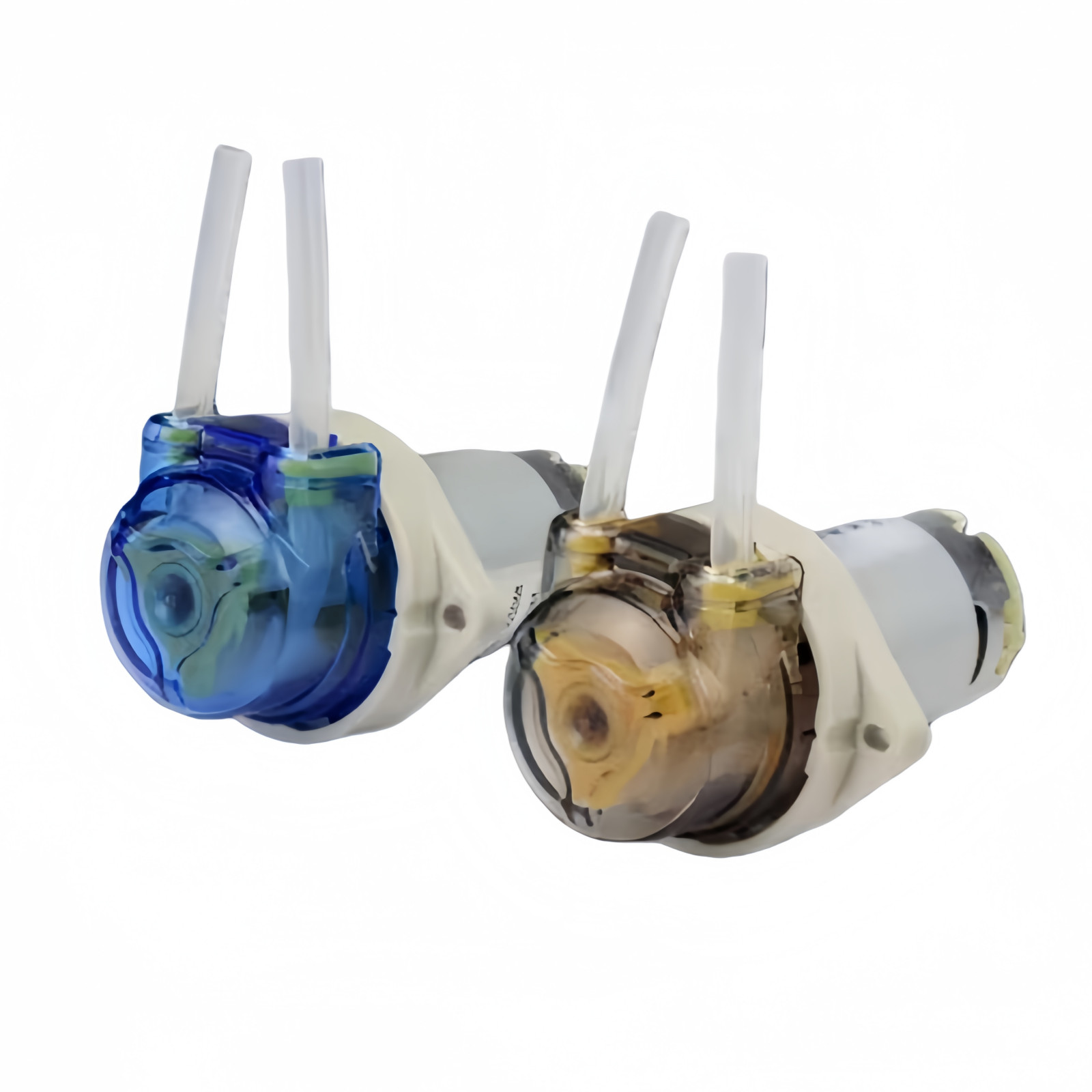

Hydroponic Low Noise Mini Peristaltic Pump 12v 3 Rollers Low Pulse 150ml/min
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Voltage | 12v |
| Metering Pump Type | Peristaltic Pump |
| Country/Region Of Manufacture | China |
| Motor | DC motor |
| MPN | Does Not Apply |
| Maximum Pressure | 2BAR |
| Brand | Unbranded |
| Maximum Flow Rate | 200ML/MIN |
| Model | 293KC/ZL12-600-A |

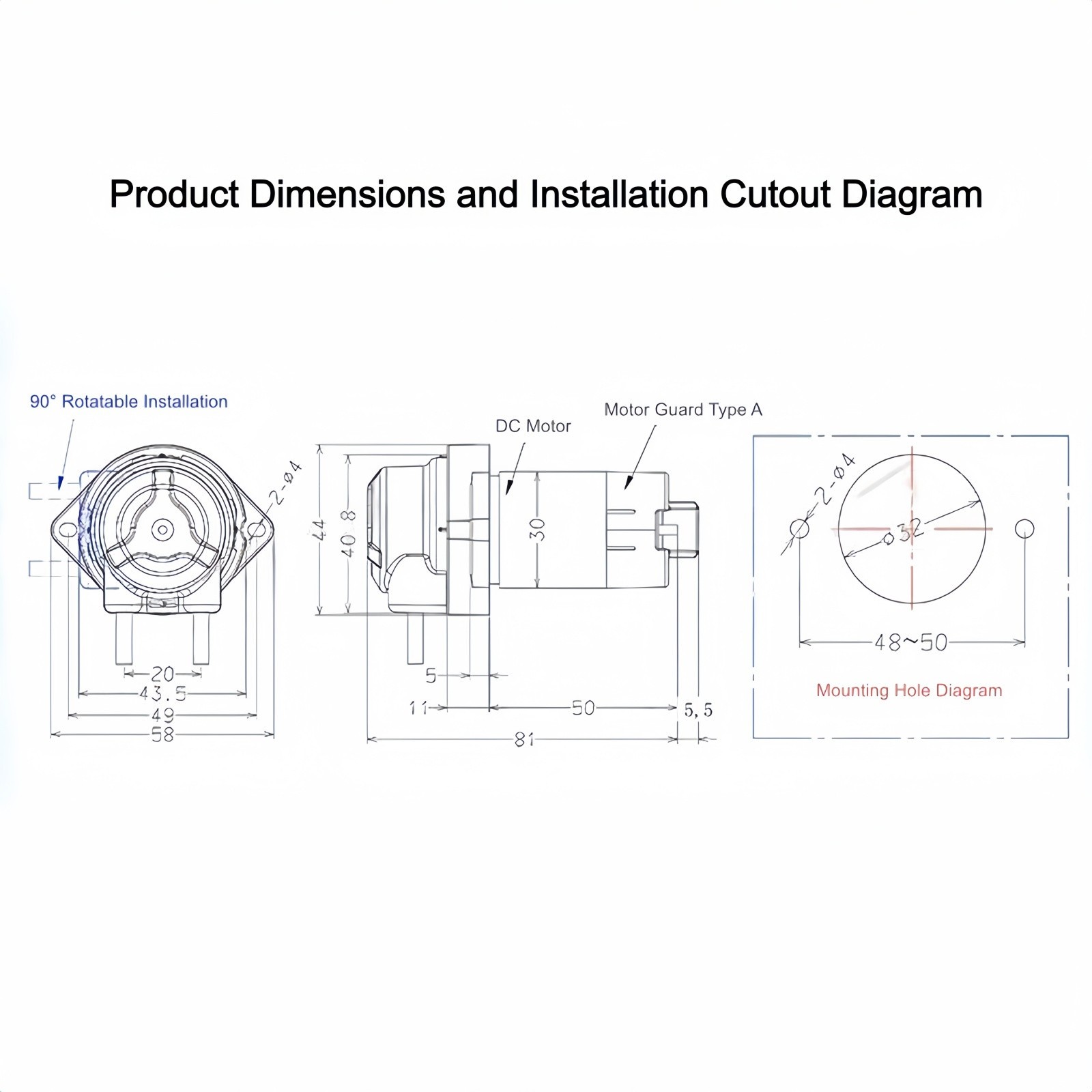

Features:Mini peristaltic pump, compact structure, ultra-small volume, width of only 58mm, maximum flow rate up to 210ml/minCan be installed side by side to save space, fully compatible with the similar friction peristaltic pump3-roller low pulse design, the tube wall 1mm, inner diameter max 4mm, no need fittingsPrecision mold forming technology,industrial design concept, tool-free disassembly of the pump cover, easy to replace the tubeCan be equipped with rated speed DC geared motorThe pump cover is available three colors(clear, blue or purple)Note: Do not apply lubricant to the pump tubeSpecificationProduct model: BT-293KC/ZLTube size: ID*WT 1*1, 2*1, 3*1, 4*1 (standard length73mm)Roller: 3 rollersMotor: Brushed DC gear motorVoltage: 12VSpeed: 600rpmMaterial: Pump body:PA66 Pump cover: PC Roller: PA66Weight 145g Dimension:Pls see in the main pricture Flow rate sheet: (silicon tube,water tested, 12V 600rpm)Tubing（ID*WT mm）1*1 2*1 3*1 4.1Flow rate:(ml/min) 23 81 151 210Remarks:1. The flow data on the above table is measured by using clean water at the normal temperature of Laboratory. For reference only；2. Tubing material, tubing size tolerance, transported medium viscosity, suction/lift etc. will affect the flow.
