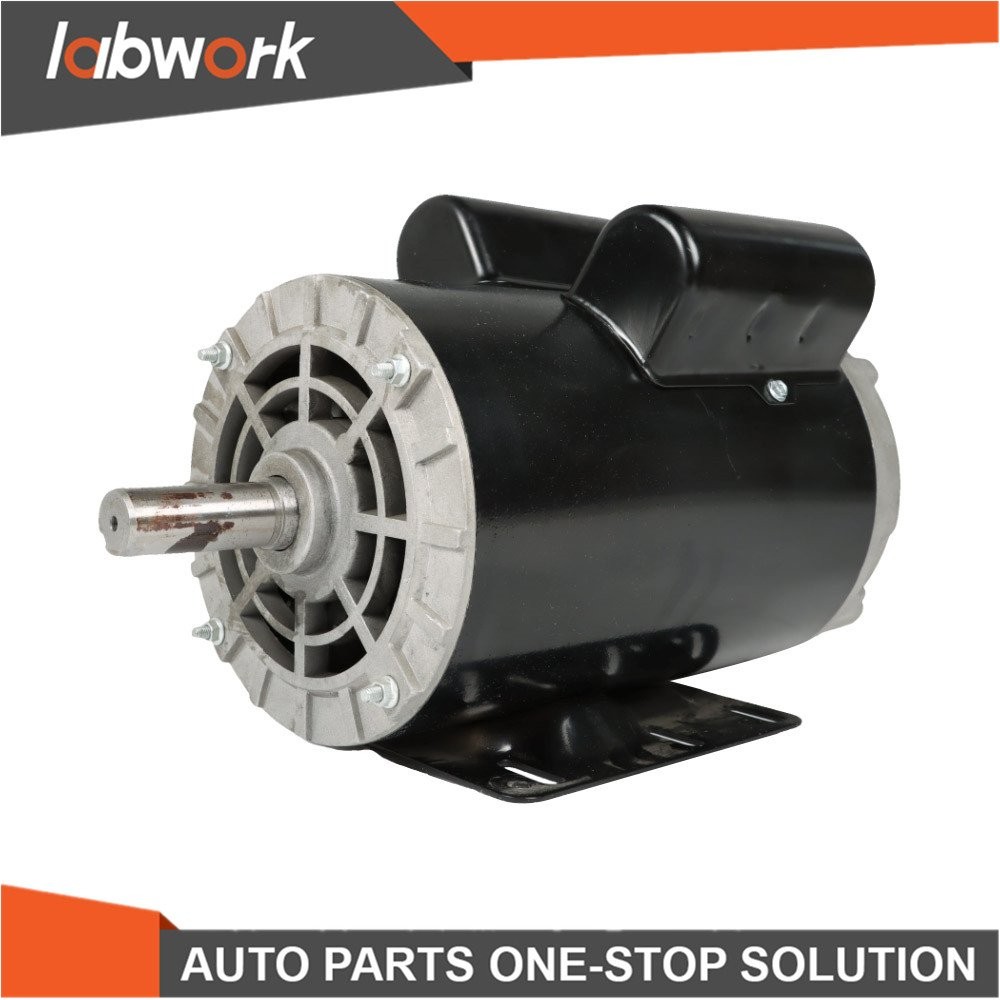

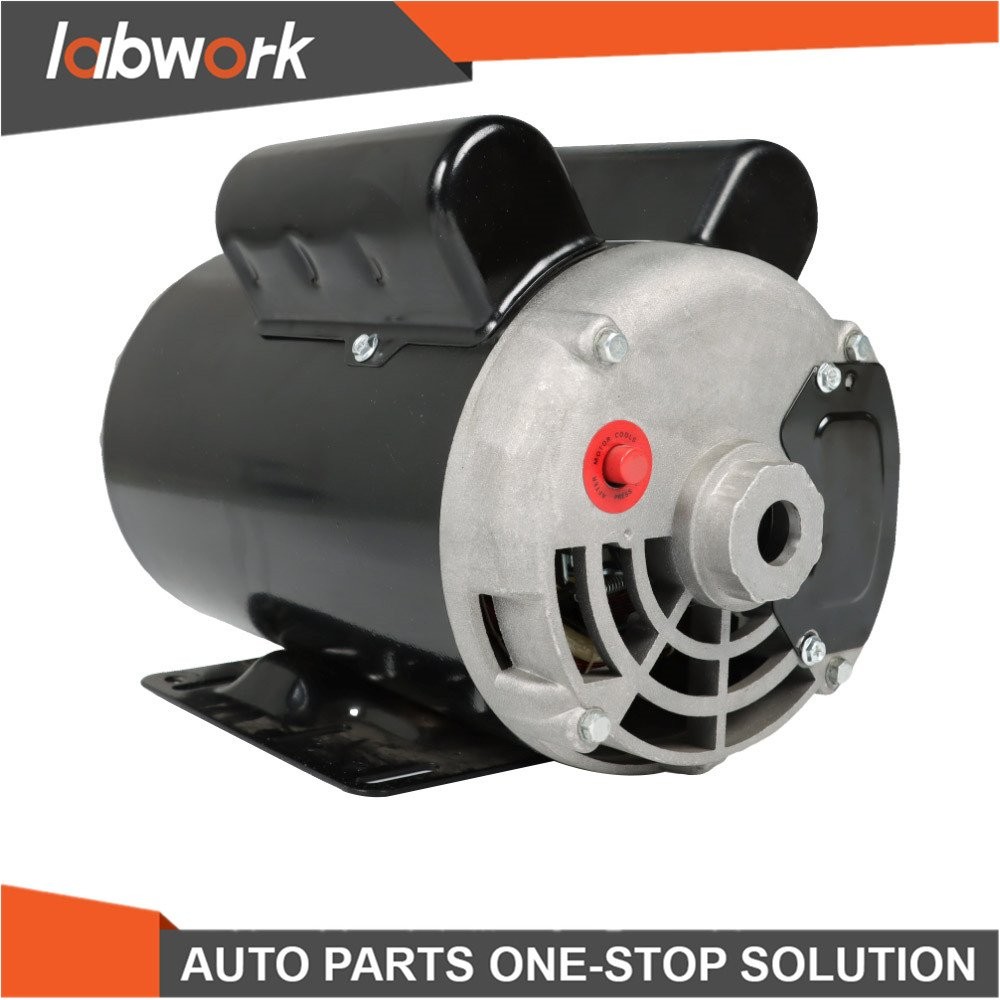

Labwork 5HP Compressor Duty Electric Motor 230V 1 Phase 3450RPM 56HZ/143T 7/8″
USD 175.43 USD
Specifications
| Country Of Origin | United States |
| Brand | labwork |
| MPN | TL25108Q |
| Shaft Diameter | 7/8 in |
| Enclosure Type | ODP (Open Drip-Proof) |
| Nominal Rated Input Voltage | 230 V |
| AC Phase | Single Phase |
| Service Factor | 1.00 |
| IEC Frame Size | 56 Hz/143T |
| Model | EM-05 |
| Reversible/Non-Reversible | Non-Reversible |
| Mounting Type | Base-Mounted |
| Shaft Type | Keyed |
| Insulation Class | F (Max 311°F) |
| Base RPM | 3450 RPM |
| Full Load Amps | 21.0A |
| Color | Multi-Color |
| Design | Open Drip Proof (ODP) |
| Overall Length W/O Shaft | 12.5" |
| Overall Length With Shaft | 14.85" |
| Overall Height | 8.65" |
| Overall Width | 6.6" |
| Shaft Length | 2.25" |
| Standard Size Keyway | 3/16" |
| Rotation | CCW |
| Manufacturer Warranty | 1 year |
Description： -Open Drip Proof (ODP) -Single Phase -5 HP -3450 RPM -60hz -230 Volts -AMB 40 °C -Frame: 56 HZ/143T -Duty: Cont. Compressor -Service Factor: 1.0 -Full Load Amps: 21.0A -INS. CL: F -Non-reversible, CCW Rotation Facing Shaft -Thermally Protected -Overall Length W/O Shaft: 12.5" -Overall Length With Shaft: 14.85" -Overall Height: 8.65" -Overall Width: 6.6" -Shaft Diameter: 7/8" -Shaft Length: 2.25" -Standard Size Keyway: 3/16" -Features Manual Reset Overload Protection Feature: 5 HP 230 volt compressor duty electric motor. .
