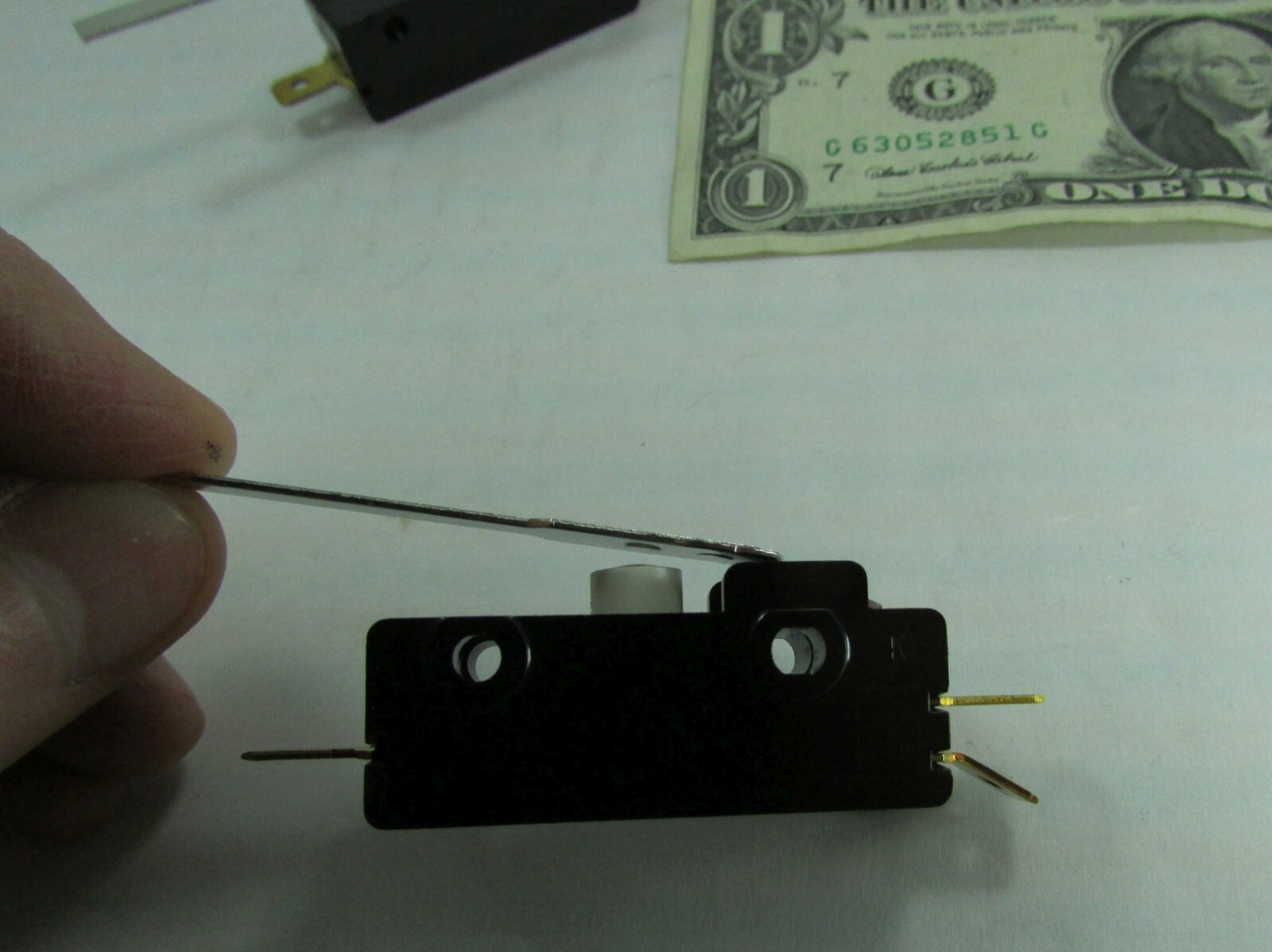

Lot 2 Cherry E13 15A Normally Open/Closed Lever MicroSwitch Limit 125/250 VAC DC
USD 14.99 USD
Specifications
| Pre-Travel | .144" / 3.65 MM |
| Over-Travel | .350 / 8.90 MM |
| MPN | E13-80HE |
| Item Length | 3.404" / 86.46 MM |
| Switch Style | Lever Actuated |
| SELLER LOCATION | USA |
| Smart Home Compatibility | Any Applicable |
| Suitable For | Interior, Wall |
| Switch Action | Momentary, SPDT |
| Current Type | AC/DC |
| Operating Force | 0.17 LB / 77 g |
| Item Height | 1.004" / 25.50 MM |
| Contact Material | Silver Alloy |
| Finish | Black |
| Item Width | .647" / 15.94 MM |
| Button Color | White |
| Operating Temperature | 105°C (Max) |
| Maximum Amperage | 15A |
| Color | Black |
| Current Rating | 15 A |
| Material | Phenolic |
| Lever Material | Steel (chrome plated) |
| Brand | Cherry Electrical |
| Type | Lever MicroSwitch |
| Bulb Compatibility | Any |
| Model | E13 |
| Standards/Compliance | UL CSA |

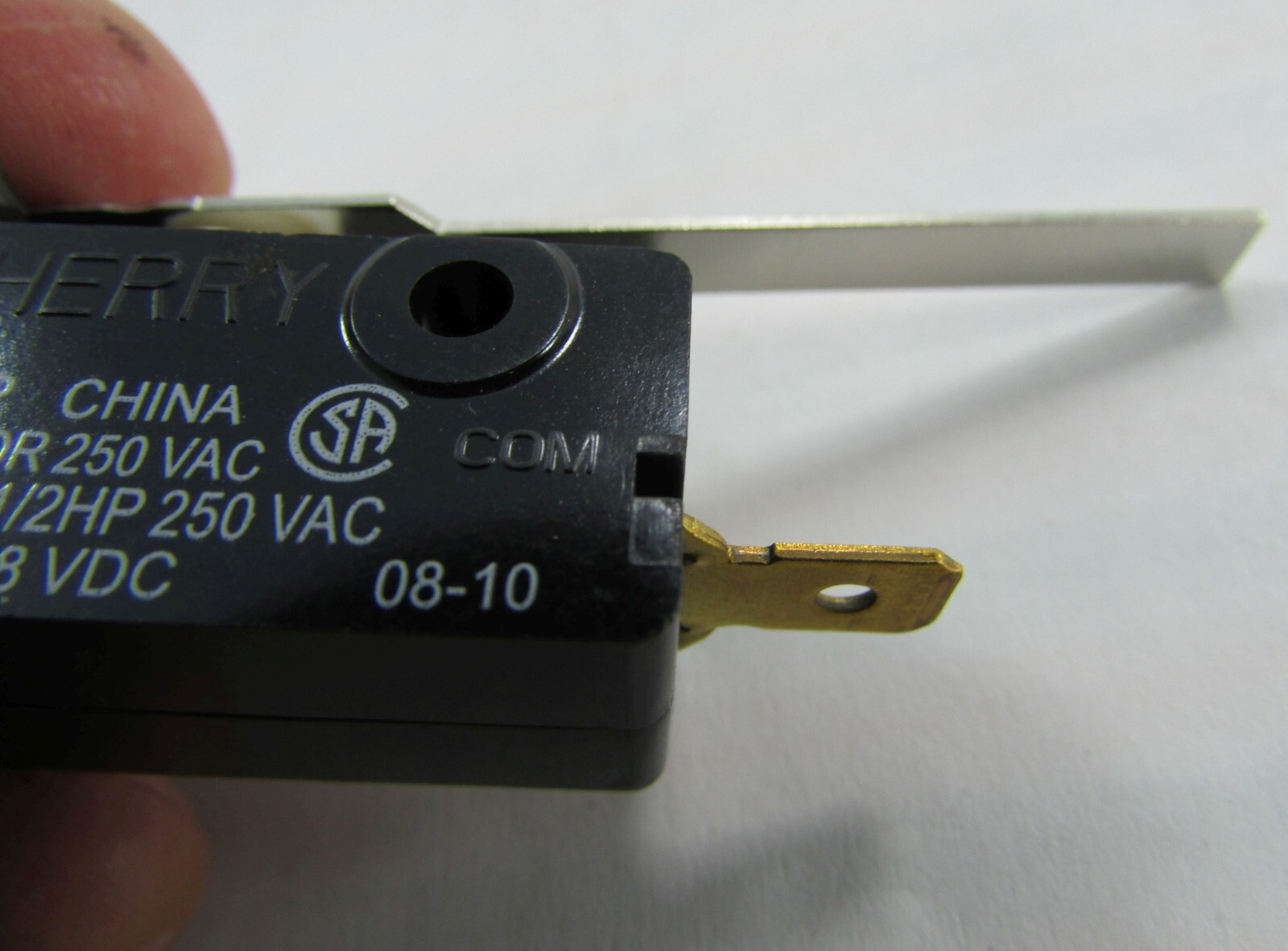

E13 P CHINA. E13 SERIES. 15A 125 or 250 VAC. These are nice sturdy switches for a multitude of applications. New Cherry 15 Amp, 125 Volt / 250 Volt, Normally Open AND Normally Closed, Lever Actuated Snap Action SPDT MicroSwitches, Part Number E13-80HE, or E1380HE, or 0E1380HE.
