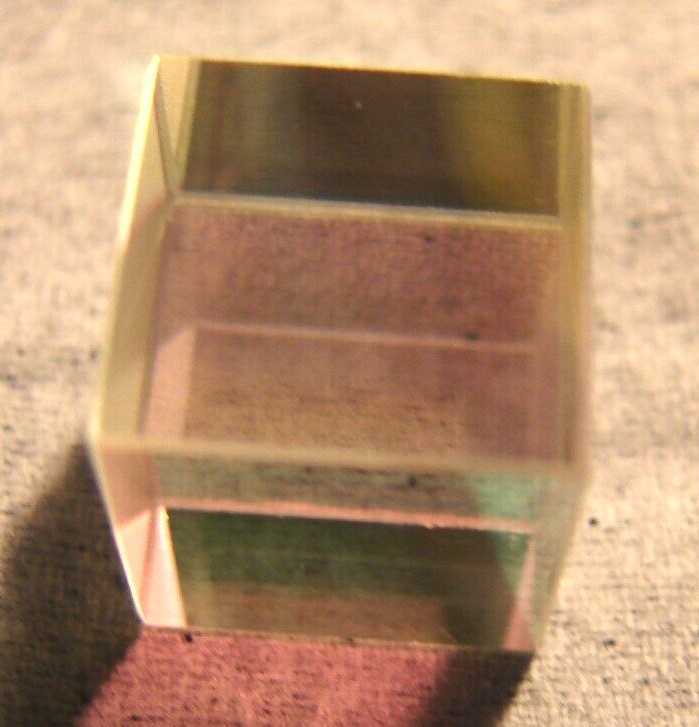

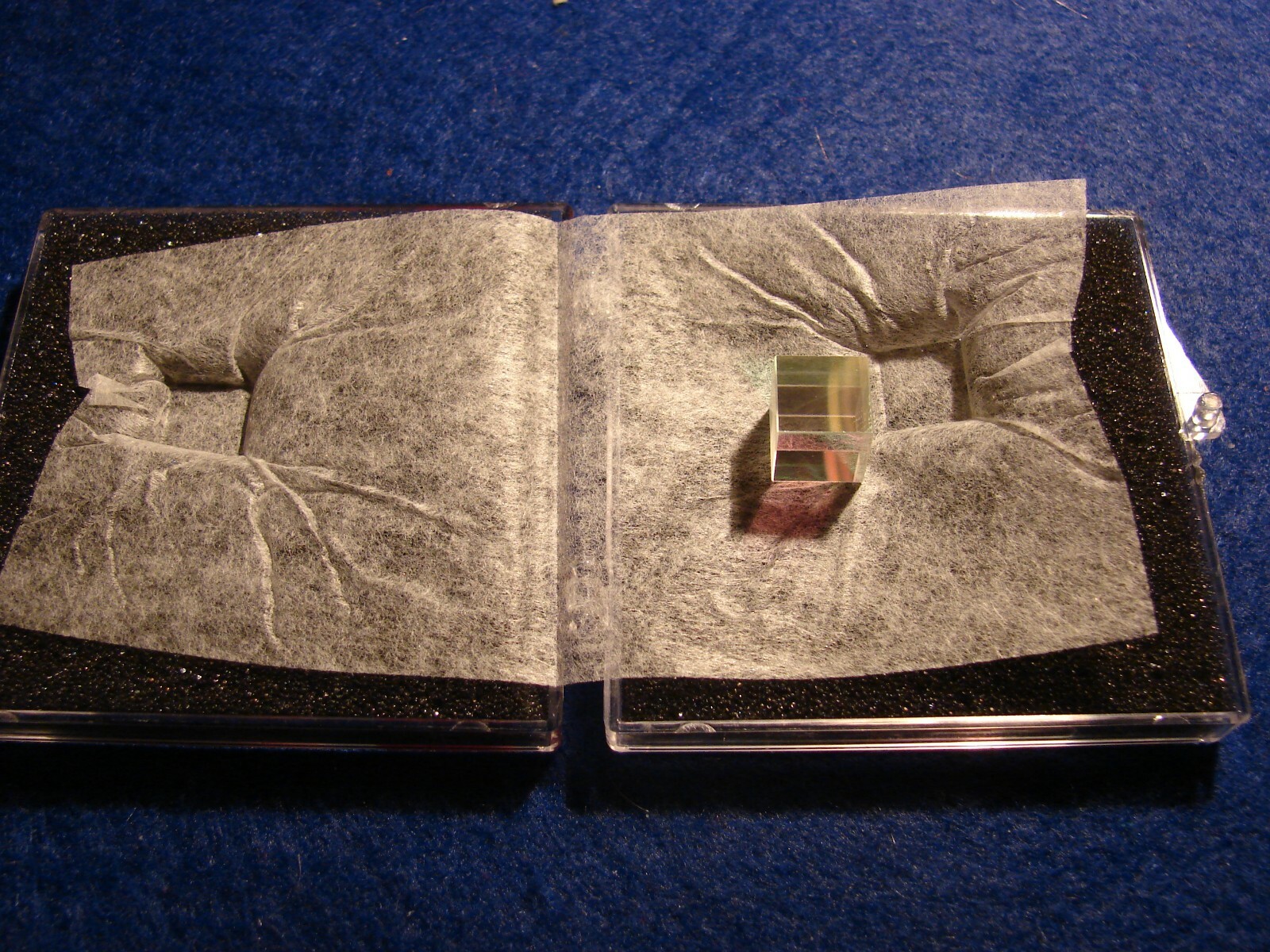

(New) Thorlabs BS012 – 10 mm, 50:50 Non-P Beamsplitter Cube – 1100 – 1600 nm
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Model | BS0-12 |
| MPN | BS012 |
| Brand | Thorlabs |
| Intended Use/Discipline | Lab |
Check out my other itemsThorlabs(New) Thorlabs BS012 (BSO12)10 mm NonpolarizingCube Beam SplitterAnti-Reflection Coating: 1100 - 1600 nmReflectivity: 50%, Transmission: 50% Features from ThorlabsBroadband AR-Coated Faces for 1100 - 1600 nm Broadband Beamsplitter Coating on Internal Diagonal Surface N-BK7 SubstrateThorlabs' non-polarizing beamsplitter cubes are offered here with broadband AR and beamsplitter coatings designed for 1100 - 1600 nm. These cubes provide a 50:50 beamsplitting ratio with a minimal dependence on the polarization of the incident light (see the tables below for the polarization split ratio tolerances).Each cube is fabricated from N-BK7 and designed for minimal beam offset. A single reflecting surface also avoids ghost images. The dielectric beamsplitter coating is applied to the hypotenuse of one of the two prisms that make up the cube. Then, cement is used to bind the two prism halves together. These cubes are engraved with arrows that indicate the direction in which the beam is incident on the beamsplitter coating layer, as shown in the diagram to the right. Although light can enter through any of the other AR-coated surfaces, specifications are guaranteed when light is first incident on the side of the beamsplitter coating; see the diagram to the right.
